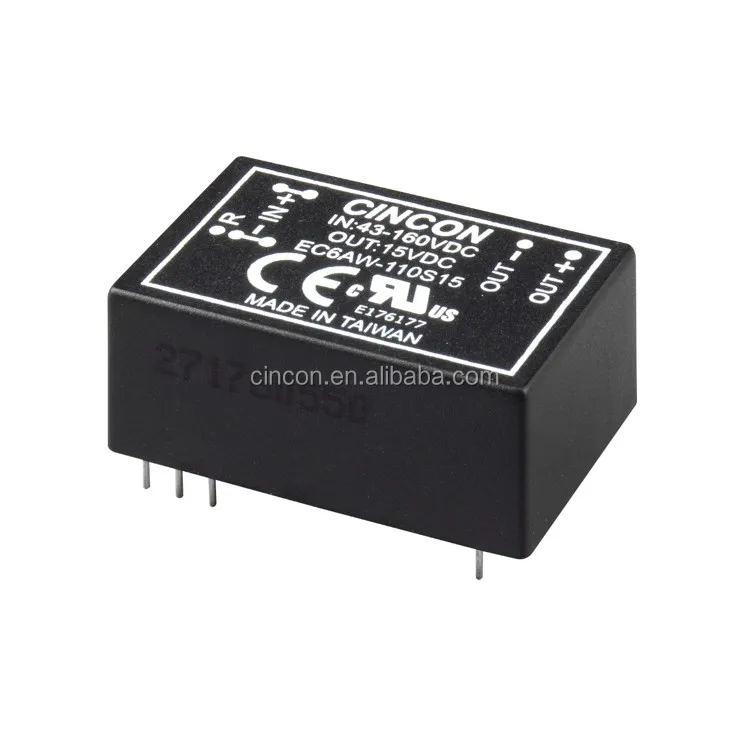

EC6AW-110 SERIES 10 WATT 4:1 INPUT RAILWAY DC-DC CONVERTER
* 8.25-10W Isolated Output * Efficiency to 88.5% * Low No Load Power Consumption * 4:1 Input Range * Regulated Outputs * Input Under-Voltage Protection * Remote On/Off * Continuous Short Circuit Protection * Over Current Protection * All Ceramic Capacitor Design * UL60950-1 2nd (Basic Insulation) Approval * Meets EN50155 with External Circuits * Shock & Vibration Meets EN50155 (EN61373) * Fire & Smoke Meets EN45545-2 * 3050m Operating Altitude
CAPACITIVE LOAD MAX.
Note: 1. Nominal Input Voltage 110 VDC
All Specifications Typical At Nominal Line, Full Load, and 25℃ Unless Otherwise Noted
Input Voltage Range
110Vin ................ 43 - 160 VDC
Input Surge Voltage (100ms max.)
200 VDC max.
Under Voltage Lockout
Vin Power Up ............... 40VDC typ.
Vin Power Down ...........38VDC typ.
Positive Logic Remote On/Off
(See Note 3 & 4)
Voltage Balance (Dual Output)
75% - 100% Step Load Change
Error Band: ±5%
Vout Nominal, Recovery Time: < 250μs
Ripple & Noise, 20MHz BW (Measured with 1uF MLCC)
Vo=3.3V & 5V & ±5V: 75mV pk-pk max.
Vo= 12V & 15V & ±12V & ±15V: 100mV pk-pk max.
Short Circuit Protection
Line Regulation (note 1)
Load Regulation (note 2)
Single: ±0.5% max.
Dual: ±1.0% max.
Cross Regulation (Dual output)
Load cross variation 25%/100%
Over Voltage Protection
Zener or TVS Clamp
110% - 170% Nominal Output
Start Up Time
10 ms max.
3000 Vdc min.
1000 pF typ.
Operating Ambient Temperature
-40℃ to +85℃
Vo=±5V: De-rating, Above 60℃
Linearly to Zero Power at +100℃
Others: De-rating, Above 67℃ (note 7)
Linearly to Zero Power at +100℃
Case Temperature (note 5)
Storage Temperature Range
-55℃ to +125℃
95% RH max. Non-Condensing
MTBF (MIL-STD-217F, GB, 25℃, Full Load)
meet UL60950-1 2nd (Basic insulation)
meet EN50155(EN50121-3-2) with external filter
Fire & Smoke

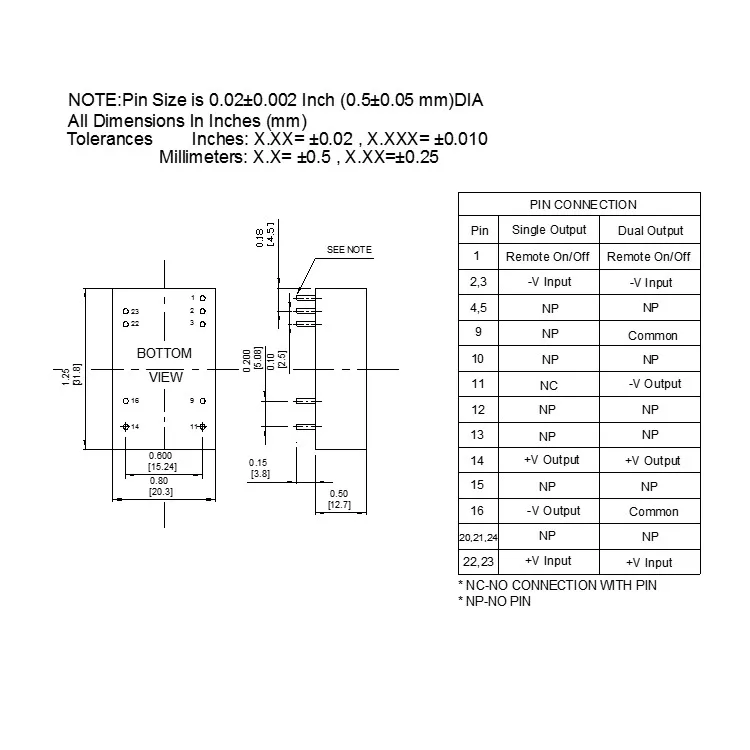

Non-Conductive Black Plastic
1. Measured from high line to low line. 2. Measured from full load to min. load. 3. Logic Compatibility ... CMOS or open collector TTL, referenced to –Vin. Module on ................... >3.5VDC to 160VDC or open circuit Module off ................................................. 0 to <1.2VDC 4. Suffix "N" to the model number with negative logic remote on/off Module on .................................................... 0 to < 1.2 VDC Module off ......................... >3.5VDC to 160VDC or open circuit 5. Maximum case temperature under any operating condition should not exceed 100℃. 6. For information about EN50155 and RIA12, refer to application note.
