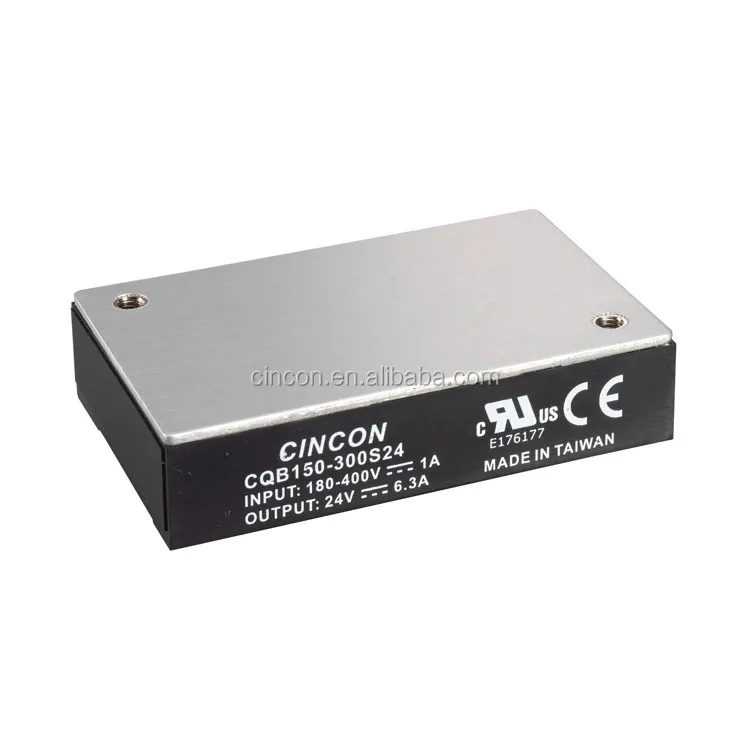

Cincon DC-DC CONVERTER CQB150-300 150W 200V 300V 400V180-425V Input to 5V, 12V, 15V, 24V, 28V, 48V Output

FOB Reference Price:Get Latest Price
$130.39 - $160.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
Cincon
Model Number:
CQB150-300
Output Power:
150W
Input Voltage:
180~425Vdc
Output Voltage:
5~48VDC
Output Type:
Single
Output Current:
3.2~30A
Output Frequency:
N/A
Wide input:
2:1
dc dc:
150W
Railway:
300Vin
Supply Ability
Supply Ability:
120000 Piece/Pieces per Month
Packaging & Delivery
Port
Taiwan
Features

CQB150W-110 SERIES
150 WATT 4:1 INPUT RAILWAY DC-DC CONVERTER

* 150W Isolated Output
* Efficiency to 92%
* Fixed Switching Frequency
* 4:1 Input Range
* Regulated Outputs
* Remote On/Off
* Low No Load Power Consumption
* Over Temperature Protection
* Over Voltage/Current Protection
* Continuous Short Circuit Protection
* Quarter Brick Size Meet Industrial Standard
* CE Mark Meets 2014/30/EU
* UL60950-1 2nd (Basic Insulation) Approval
* CB Test Certificate IEC60950-1
* Meets EN50155 with External Circuits
* Shock & Vibration Meets EN50155 (EN61373)
* Fire & Smoke Meets EN45545-2
* 3000m Operating Altitude

Model type
MODEL
INPUT
OUTPUT
OUTPUT CURRENT
INPUT CURRENT
Efficiency (%)
CAPACITIVE LOAD MAX.
(Vdc)
(Vdc)
MIN.
MAX.
NO LOAD
FULL LOAD
CQB150-300S05
180-425
5
0 mA
30 A
10 mA
580 mA
86
10000μF
CQB150-300S12
180-425
12
0 mA
12.5 A
10 mA
560 mA
89
8000μF
CQB150-300S15
180-425
15
0 mA
10 A
10 mA
560 mA
89
3300μF
CQB150-300S24
180-425
24
0 mA
6.3 A
10 mA
570 mA
88.5
2700μF
CQB150-300S28
180-425
28
0 mA
5.4 A
10 mA
570 mA
88.5
1650μF
CQB150-300S48
180-425
48
0 mA
3.2 A
10 mA
570 mA
89
1000μF

Note:

1. Nominal Input Voltage 300 VDC

2. Require a Ceramic Capacitor 2200pF Connected Between –Vin to Case for All Models.
3. An External Input Capacitor 180uF for All Models are Recommended to Reduce Input Ripple Voltage.
4. Measure at Nominal Input Voltage.

Specification

All Specifications Typical At Nominal Line, Full Load, and 25℃ Unless Otherwise Noted

INPUT SPECIFICATIONS
Input Voltage Range
300Vin ................ 180 - 425 VDC
Input over voltage protection
Module On ............... 440VDC typ.
Module OFF... ...........450VDC typ.
Under Voltage Lockout
Vin Power Up ............... 170VDC typ.
Vin Power Down ...........160VDC typ.
Positive Logic Remote On/Off
(See Note 4 & 5)
Input Filter
PI Type
OUTPUT SPECIFICATIONS
Voltage Accuracy
±1.0% max
Transient Response
25% Step Load Change, < 250μs
External Trim Adj. Range
 +10%~-20%
Ripple & Noise, 20MHz BW (Note 3)
5V ........................... 60mV RMS, 100mV pk-pk max.
12V .......................... 60mV RMS, 150mV pk-pk max.
24V&28V................ 100mV RMS, 280mV pk-pk max.
48V ...................... 200mV RMS, 480mV pk-pk max.
Temperature Coefficient
±0.02%/℃
Short Circuit Protection
Continuous
Line Regulation (note 1)
±0.2% max
Load Regulation (note 2)
±0.2% max
Over Voltage Protection trip Range, % Vo nom.
115-140%
Current Limit
110% - 160% Nominal Output
Start Up Time
280 ms typ.
GENERAL SPECIFICATIONS
Isolation Voltage
Input/Output: 3000 VAC min.
Input/Case: 2500VAC min.
Output/Case: 500VAC min.
Isolation resistance
108Ω min.
Switching Frequency
360KHz typ.
Operating Case Temperature
-40℃ to +105℃
Storage Temperature
-55℃ to +125℃
Thermal Shutdown Case Temperature
110℃ typ.
Humidity
95% RH max. Non-Condensing
MTBF (MIL-STD-217F, GB, 25℃, Full Load)
48V: 1000Khrs typ.
Others: 800Khrs typ.
Safety
meet UL60950-1 2nd (Basic insulation)
EMC(note8)
meet EN50155(EN50121-3-2) with external filter
Shock/Vibration
meet EN50155(EN61373)
Environmental
EN50155(EN60068-2-1)
MECHANICAL CHARACTERISTICS
Dimensions
2.28x1.45x0.50 inches (57.9x36.8x12.7 mm)
Case Material
Aluminum Base Plate with Plastic Case
Weight
65g

NOTE:

1. Measured from high line to low line.
2. Measured from full load to zero load.
3. Output ripple and noise measured with 10uF aluminum and 1uF ceramic capacitor across output for 48Vout and with 10uF tantalum and 1uF ceramic capacitor for others.
4. Logic compatibility ....................................... open collector ref to -Input
    Module on ......................... >3.5Vdc to 75Vdc or open circuit
    Module off ...................................................... 0 to < 1.2Vdc
5. Suffix "N" to the model number with negative logic remote on/off
    Module on ...................................................... 0 to < 1.2Vdc
    Module off ........................... >3.5Vdc to 75Vdc or open circuit
6. Suffix "-C" to the model number with clear mounting insert (3.2mm DIA.).
7. An external input capacitor 180uF for all models are recommended to reduce input ripple voltage.
8. Require a disc ceramic capacitor 2200pF (type KX Class X1 Y1 series Murata) connected between –vin to case for all models.
