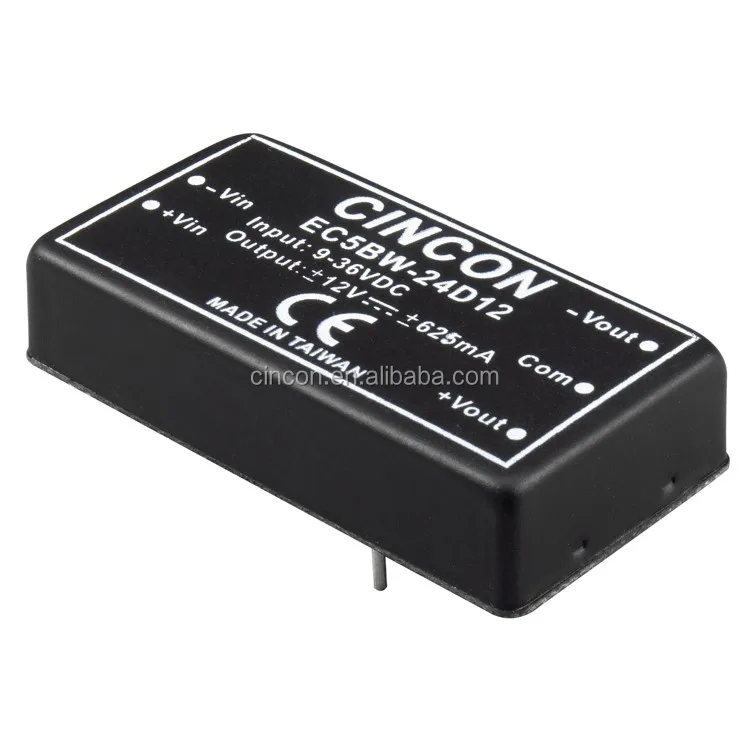

Cincon DC DC CONVERTER 15W EC5BW 12V 24V 48V 72V 9-36V 18-75V Input to 3.3V, 5V, 12V, 15V, +/-5V, +/-12V, +/-15V Output

FOB Reference Price:Get Latest Price
$22.00 - $32.60 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
Cincon
Model Number:
EC5BW
Output Power:
15W
Input Voltage:
9-36, 18-75Vdc
Output Voltage:
3.3~15, ±5, ±12, ±15 VDC
Type:
DC/DC Converters
Output Type:
Single/Dual
Output Current:
±500~1500mA, 1~4A
Output Frequency:
N/A
Wide input:
4:1
dc dc:
15W
small:
2"x1"
Supply Ability
Supply Ability:
120000 Piece/Pieces per Month
Packaging & Delivery
Port
Hong Kong
Lead Time :
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 7 To be negotiated
Features

EC5BW SERIES
15 WATT 4:1 INPUT DC-DC CONVERTER

* 15W Isolated Output
* Efficiency to 88%
* 2''x1'' Six-Sided Shield Metal Case
* 4:1 Input Range
* Regulated Outputs
* Fixed Switching Frequency
* Input Under Voltage Protection
* Over Current Protection
* Remote On/Off (Option)
* Continuous Short Circuit Protection
* No Tantalum Capacitor Inside
* Conductive EMI Meets EN55022 Class A
* CE Mark Meets 2004/108/EC
* Safety Meets UL60950-1, EN60950-1 and IEC60950-1

Model type
MODEL
INPUT
OUTPUT
OUTPUT CURRENT
INPUT CURRENT
Efficiency (%)
CAPACITIVE LOAD MAX.
(Vdc)
(Vdc)
MIN.
MAX.
NO LOAD
FULL LOAD
EC5BW-24S33
9-36
3.3
0 mA
4000 mA
60 mA
632 mA
87
4000uF
EC5BW-24S05
9-36
5
0 mA
3000 mA
70 mA
718 mA
87
3000uF
EC5BW-24S12
9-36
12
0 mA
1250 mA
30 mA
718 mA
87
1250uF
EC5BW-24S15
9-36
15
0 mA
1000 mA
30 mA
710 mA
88
1000uF
EC5BW-24D05
9-36
±5
0 mA
±1500 mA
30 mA
735 mA
85
1500uF
EC5BW-24D12
9-36
±12
0 mA
±625 mA
30 mA
718 mA
87
625uF
EC5BW-24D15
9-36
±15
0 mA
±500 mA
30 mA
710 mA
88
470uF
EC5BW-48S33
18-75
3.3
0 mA
4000 mA
40 mA
313 mA
88
4000uF
EC5BW-48S05
18-75
5
0 mA
3000 mA
40 mA
355 mA
88
3000uF
EC5BW-48S12
18-75
12
0 mA
1250 mA
20 mA
359 mA
87
1250uF
EC5BW-48S15
18-75
15
0 mA
1000 mA
20 mA
359 mA
87
1000uF
EC5BW-48D05
18-75
±5
0 mA
±1500 mA
20 mA
368 mA
85
1500uF
EC5BW-48D12
18-75
±12
0 mA
±625 mA
20 mA
359 mA
87
625uF
EC5BW-48D15
18-75
±15
0 mA
±500 mA
20 mA
359 mA
87
470uF

Note:

1. Nominal Input Voltage 24 or 48 VDC

2. Efficiency measured at Nominal Input Voltage

Specification

All Specifications Typical At Nominal Line, Full Load, and 25℃ Unless Otherwise Noted

INPUT SPECIFICATIONS
Input Voltage Range
24Vin ................ 9 - 36 VDC
48Vin ................ 18 - 75 VDC
Input Surge Voltage (100ms max.)
24Vin ................50 VDC max.
48Vin ................100 VDC max.
Under Voltage Lockout
24Vin Power Up ............... 8.8VDC typ.
24Vin Power Down ...........8VDC typ.
48Vin Power Up ............... 17VDC typ.
48Vin Power Down ...........16VDC typ.
Positive Logic Remote On/Off
Logic Compatibility: CMOS or Open Collector TTL, ref. to –Vin
Module On: >+3.5 to 75VDC or Open Circuit
Module Off: 0 to <1.2VDC
Input Filter
PI Type
OUTPUT SPECIFICATIONS
Voltage Accuracy
±1.5% max
Voltage Balance (Dual Output)
±2.0% max
Transient Response
75%-100% Step Load Change
Error Band: ±5% Vout Nominal
Recovery Time: < 250μs
External Trim Adj. Range (Single Output Models Only)
 ±10%
Ripple & Noise, 20MHz BW (note 3)
Vo=3.3 & 5V.......... 75mV pk-pk max.
Vo= 12 & 15V........ 100mV pk-pk max.
Temperature Coefficient
±0.03%/℃
Short Circuit Protection
Continuous (Hiccup Mode)
Line Regulation (note 1)
Single: ±0.2% max
Dual: ±0.5% max.
Load Regulation (note 2)
Single: ±0.2% max.
Dual: ±1.0% max.
Cross Regulation Load cross variation 10%/100%
(For Dual output)
±5% max.
Over Voltage Protection
Zener or TVS Clamp
Current Limit
110% - 170% Nominal Output
Start Up Time
20 ms max.
GENERAL SPECIFICATIONS
Isolation Voltage
1500 Vdc min.
Isolation resistance
109Ω min.
Isolation Capacitance
1000pF typ.
Switching Frequency
400KHz typ.
EMI/RFI
Conductive EMI Meets EN55022 Class A
Case Grounding
Connect Case to -Vin with Decoupling Y Cap
Operating Ambient Temperature
-40℃ to +85℃
De-rating, Above 78℃
Linearly to Zero Power at +105℃
Case Temperature (note 3)
105℃ max.
Cooling
Natural Convection
Storage Temperature Range
-55℃ to +125℃
Humidity
95% RH max. Non-Condensing
MECHANICAL CHARACTERISTICS
Dimensions
2.00x1.00 x0.40 inches (50.8x25.4x10.2 mm)
Case Material
Black Coated Copper with Non-Conductive Base
Weight
35g

NOTE:

1. Measured from high line to low line.
2. Measured from full load to min. load.
3. Maximum case temperature under any operating condition should not be exceeded 105℃.

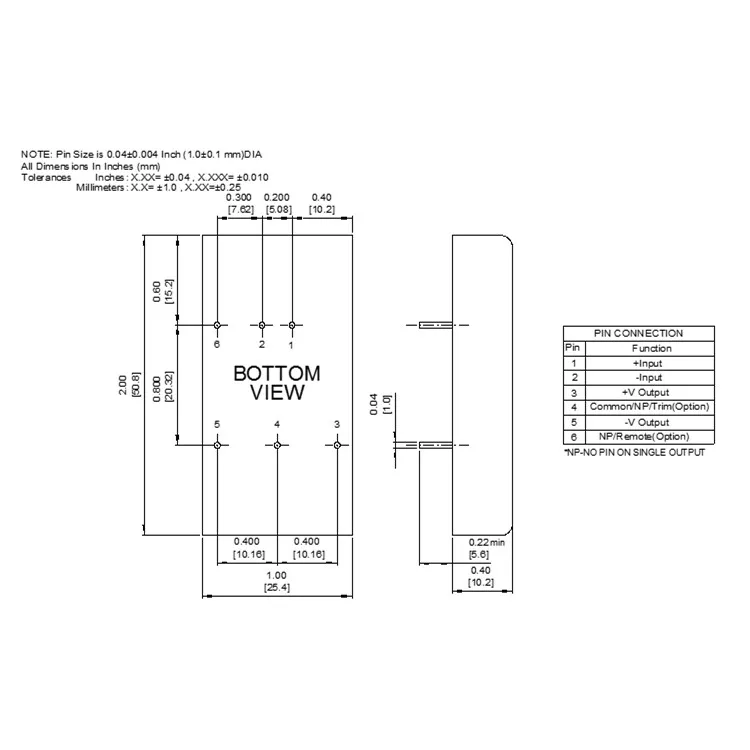

Dimensions
Our Company

Cincon Electronics Co., Ltd. is a global supplier of switch mode power conversion products to the communications, computer, industrial, medical, consumer and lighting markets. We design and manufacture industry standard, RoHS compliant, DC-DC converters, AC-DC power supplies and LED power supplies.
Our current offerings comprise over 3000 standard products including single & multiple output DC-DC converters from 1W to 700W , single & multiple output AC adapters from 5W to 150 W, open frame AC-DC power supplies from 5W to 1600W and LED power supplies from 16W to 150W.
Cincon also offers modified standard and custom power conversion products. We're expert in the design and manufacture of power supplies engineered to customer requirements. Emphasis is placed on reliability, rapid prototyping and adherence to cost targets.
Products are designed-for-manufacturability using the latest simulation techniques, test equipment and computer aided design tools. Our wholly owned, ISO 9001 & 14001 factories in Taiwan and China are outfitted with state-of-the art manufacturing equipment, including SMT pick-and-place assembly machinery.
Quality and process control is insured using a variety of statistical sampling and analysis techniques throughout the manufacturing cycle. In addition, all products must pass a rigorous burn-in and fully automated final test before shipment.
Our power supplies are engineered to meet worldwide safety standards. All AC-DC products and a variety of DC-DC products are UL listed or recognized; TUV approved and carry the CE mark. Cincon also certifies to other international safety standards, including PSE and CCC, on request. Products are also designed to meet the various international EMI standards.
