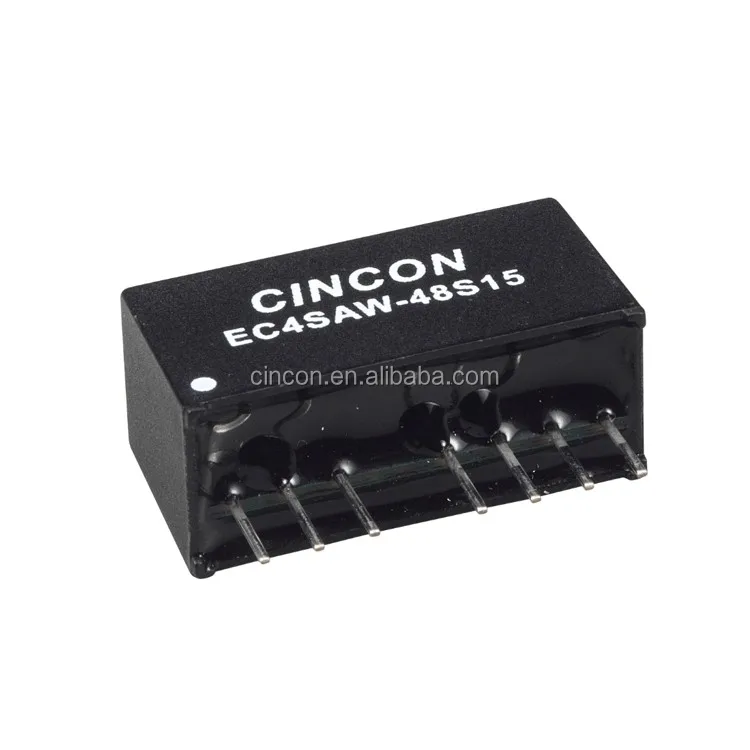

Cincon DC-DC CONVERTER EC4SAW 5W 6W 12V 24V 48V 72V 9-36V 18-75V Input to 3.3V, 5V, 12V, 15V, +/-12V, +/-15V Output

FOB Reference Price:Get Latest Price
$10.05 - $11.36 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
Cincon
Model Number:
EC4SAW
Output Power:
5~6W
Input Voltage:
9-36, 18-75Vdc
Output Voltage:
3.3, 5, 12, 15, ±5~±15 VDC
Type:
DC/DC Converters
Output Type:
Single/Dual
Output Current:
±200mA~±600mA, 400~1500mA
Output Frequency:
N/A
Size:
SIP8
input range ratio:
1:4
DC DC:
SIP8
DC DC CONVERTER:
6W
Supply Ability
Supply Ability:
120000 Piece/Pieces per Month
Packaging & Delivery
Port
Hong Kong
Lead Time :
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 7 To be negotiated
Features

EC4SAW SERIES
5-6 WATT 4:1 INPUT DC-DC CONVERTER

* 5-6W Isolated Output
* Compact SIP-8 Package
* Efficiency to 89%
* 4:1 Input Range
* Regulated Outputs
* Remote On/Off Control
* 1500VDC Isolation
* Continuous Short Circuit Protection

Model type
MODEL
INPUT
OUTPUT
OUTPUT CURRENT
INPUT CURRENT
Efficiency (%)
CAPACITIVE LOAD MAX.
(Vdc)
(Vdc)
MIN.
MAX.
NO LOAD
FULL LOAD
(2)
(3)
EC4SAW-24S33N
9-36
3.3
0 mA
1500 mA
4 mA
310 mA
82
82
4700uF
EC4SAW-24S05N
9-36
5
0 mA
1200 mA
4 mA
298 mA
86
86
2200uF
EC4SAW-24S12N
9-36
12
0 mA
500 mA
5 mA
288 mA
88
88
1100uF
EC4SAW-24S15N
9-36
15
0 mA
400 mA
5 mA
288 mA
89
88
470uF
EC4SAW-24D05N
9-36
±5
0mA
±600 mA
4 mA
298 mA
86
86
1400uF
EC4SAW-24D12N
9-36
±12
0 mA
±250 mA
6 mA
288 mA
88
88
660uF
EC4SAW-24D15N
9-36
±15
0 mA
±200 mA
6 mA
288 mA
88
88
220uF
EC4SAW-48S33N
18-75
3.3
0 mA
1500 mA
3 mA
155 mA
82
82
4700uF
EC4SAW-48S05N
18-75
5
0 mA
1200 mA
3 mA
150 mA
85
85
2200uF
EC4SAW-48S12N
18-75
12
0 mA
500 mA
3 mA
145 mA
88
89
1100uF
EC4SAW-48S15N
18-75
15
0 mA
400 mA
3 mA
145 mA
89
88
470uF
EC4SAW-48D05N
18-75
±5
0 mA
±600 mA
4 mA
150 mA
85
85
1400uF
EC4SAW-48D12N
18-75
±12
0 mA
±250 mA
3 mA
145 mA
88
89
660uF
EC4SAW-48D15N
18-75
±15
0 mA
±200 mA
3 mA
145 mA
88
89
220uF

Note:

1. Nominal Input Voltage 24 or 48 VDC
2. Measure at 12VDC for 24 Vin, 24VDC for 48 Vin
3. Measure at Nominal Input Voltage

Specification

All Specifications Typical At Nominal Line, Full Load, and 25℃ Unless Otherwise Noted

INPUT SPECIFICATIONS
Input Voltage Range
24Vin ................ 9 - 36 VDC
48Vin ................ 18 - 75 VDC
Input Surge Voltage (100ms max.)
24Vin ................50 VDC max.
48Vin ................100 VDC max.
Positive Logic Remote On/Off (Note 4)
Module On: Open or high impedance
Module Off: 2mA to 4mA
Module Off (input idle current): 2.5mA max.
Input Filter
Capacitive
OUTPUT SPECIFICATIONS
Voltage Accuracy
±1.5% max
Voltage Balance (Dual Output)
±1.0% max
Transient Response
25% Step Load Change
Error Band: ±5% Vout Nominal
Recovery Time: < 250μs
Ripple & Noise, 20MHz BW
100mV pk-pk max.
Temperature Coefficient
±0.03%/℃
Line Regulation (note 1)
±0.2% max
Load Regulation (note 2)
Single: ±0.5% max.
Dual: ±1.0% max.
Short Circuit Protection
Continuous
Cross regulation(Dual note3)
Asymmetrical load 25%/100%
±5.0% max
Current Limit
180% Nominal Output
Start Up Time
15 ms typ.
GENERAL SPECIFICATIONS
Isolation Voltage
1500 Vdc min.
Isolation resistance
109Ω min.
Isolation Capacitance
50pF typ.
Switching Frequency
580KHz typ.
Operating Ambient Temperature
-40℃ to +85℃
De-rating, Above 61℃ ...... 3.3V/5V
Linearly to Zero Power at +105℃
De-rating, Above 65℃ ...... 12V/15V
Linearly to Zero Power at +105℃
Case Temperature (note 3)
105℃ max.
Cooling
Natural Convection
Storage Temperature Range
-55℃ to +125℃
Thermal Shutdown Case Temperature
110℃ typ.
Humidity
95% RH max. Non-Condensing
MTBF (MIL-STD-217F, GB, 25℃, Full Load)
1850Khrs typ.
MECHANICAL CHARACTERISTICS
Dimensions
0.86x0.36x0.44 inches(21.8x9.2x11.1 mm)
Case Material
Non-Conductive Black Plastic
Weight
4.8g

NOTE:

1. Measured from high line to low line.
2. Measured from full load to min. load.
3. For asymmetric loading, both channels must be at 25% load or more.
4. Maximum case temperature under any operating condition should not exceed 105℃.

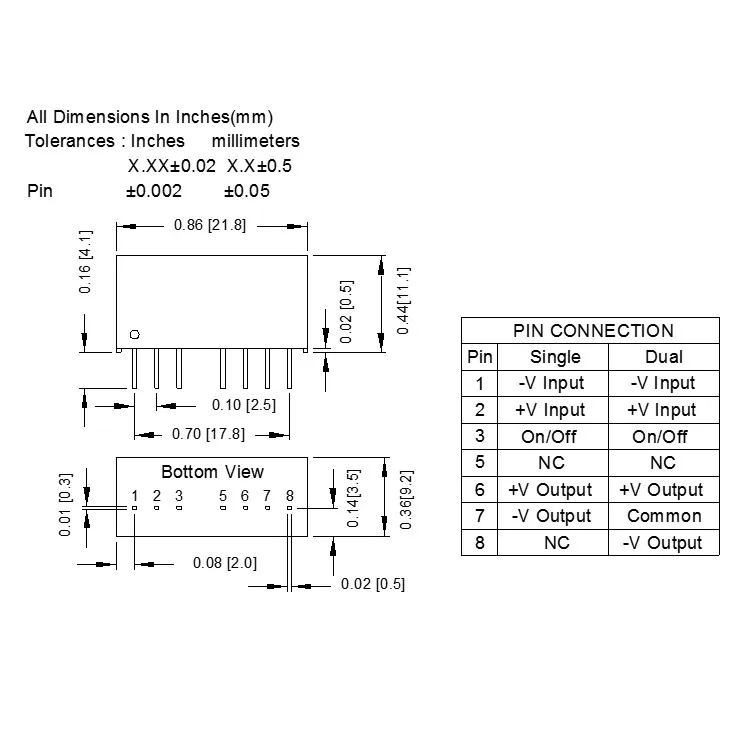

Dimensions
