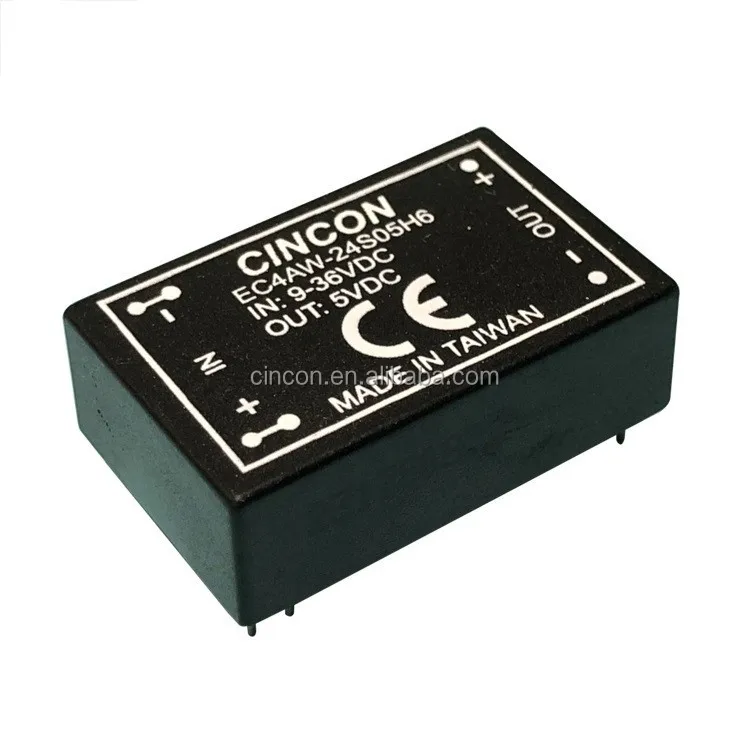

EC4AW-H6 SERIES
5-6 WATT DIP-24 4:1 WIDE INPUT DC-DC CONVERTER

* 5-6W Isolated Output
* DIP-24 Package
* Regulated Outputs
* Efficiency to 85%
* Continuous Short Circuit Protection
* I/O Isolation Voltage 6000VDC
* Reinforced Insulation Rated For Working Voltage 300VAC
* 5 uA Leakage Current
* EMI Meets EN55022 Class A
* Safety Meets UL60950-1 and UL60601-1

Model type
MODEL
INPUT
OUTPUT
OUTPUT CURRENT
INPUT CURRENT
EFFICIENCY (%)
CAPACITOR LOAD MAX.
MIN.(4)
MAX.
NO LOAD
FULL LOAD
(2)
(3)
EC4AW-24S05H6
9-36 VDC
5 VDC
100 mA
1000 mA
10 mA
260 mA
81
80
1000uF
EC4AW-24S12H6
9-36 VDC
12 VDC
50 mA
500 mA
10 mA
295 mA
85.5
85
500uF
EC4AW-24D12H6
9-36 VDC
±12 VDC
25 mA
±250 mA
15 mA
298 mA
84.5
84
250uF
EC4AW-24D15H6
9-36 VDC
±15 VDC
20 mA
±200 mA
15 mA
298 mA
84.5
84
200uF
EC4AW-48S05H6
18-72 VDC
5 VDC
100 mA
1000 mA
5 mA
130 mA
81
80
1000uF
EC4AW-48S12H6
18-72 VDC
12 VDC
50 mA
500 mA
5 mA
149 mA
85
84
500uF
EC4AW-48D12H6
18-72 VDC
±12 VDC
25 mA
±250 mA
8 mA
150 mA
84
83
250uF
EC4AW-48D15H6
18-72 VDC
±15 VDC
20 mA
±200 mA
8 mA
149 mA
85
84
200uF

Note: 1. Nominal Input Voltage 24 or 48 VDC

Specification

All Specifications Typical At Nominal Line, Full Load, and 25℃ Unless Otherwise Noted

INPUT SPECIFICATIONS
Input Voltage Range
24VDC .................. 9-36VDC
48VDC ..................18-72VDC
Under Voltage Lockout
24Vin power up: 8.8V, power down: 8V
48Vin power up: 17V, power down: 16V
Leakage Current
5uA max.
Input Filter
PI Type
Input Surge (100ms max.)
24Vin: 50V max.
48Vin: 100V max.
OUTPUT SPECIFICATIONS
Voltage Accuracy
±1.5% max
Voltage Balance(Dual)
±2.0% max
Transient Response
75% - 100% Step Load Change
Error Band: ±6% Vout Nominal
Recovery Time: < 500us
Ripple & Noise, 20MHz BW
5V: 100mV pk-pk max.
12V/15V: 1% pk-pk max.
Temperature Coefficient
±0.05%/℃
Line Regulation (note 1)
±0.5% max
Load Regulation
Single (note 2): ±0.5% max
Dual (note 3): ±1% max
Cross Regulation (Dual Output) Load Cross Variation 25%/100%
±5% max
Output Short Circuit Protection
Continuous
Start Up Time
1.5ms typ.
GENERAL SPECIFICATIONS
Isolation Voltage
6000 Vdc min.
Isolation resistance
109Ω min.
Isolation Capacitance
40pF typ.
Reinforced Insulation
Creepage Distances: 8mm min.
Air Clearances: 8mm min.
Switching Frequency
100KHz typ.
Operating Ambient Temperature
-40℃ to +71℃
De-rating, Above 71℃
Linearly to Zero Power at +100℃
Case Temperature (Note 4)
100℃
Storage Temperature Range
-40℃ to +100℃
Humidity
95% RH max. Non-Condensing
EMI
Conductive EMI Meet EN55022 Class A
MTBF (MIL-STD-217F, GB, 25℃, Full Load)
1430Khrs typ.
MECHANICAL CHARACTERISTICS
Dimensions
1.25x0.80x0.40 inches (31.8x20.3x10.2 mm)
Case Material
Non-Conductive Black Plastic Case
Weight
13.1g

NOTE:

1. Measured from high line to low line.
2. Measured from full load to 10% load.

3. Measured from full load to 25% load.
4. Maximum case temperature under any operating condition should not be exceeded 100℃.

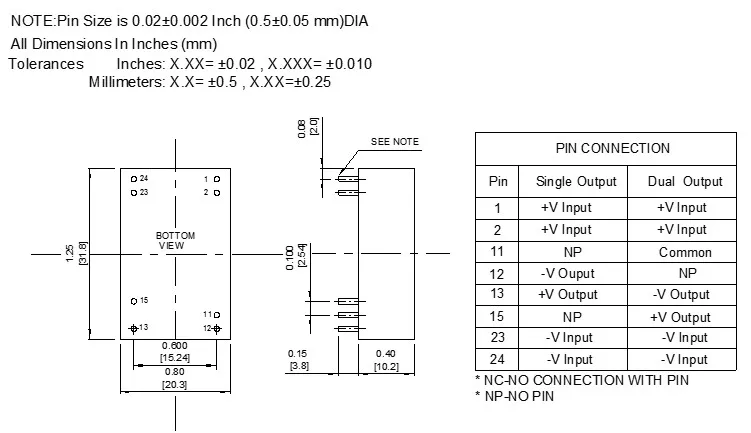

Dimensions
