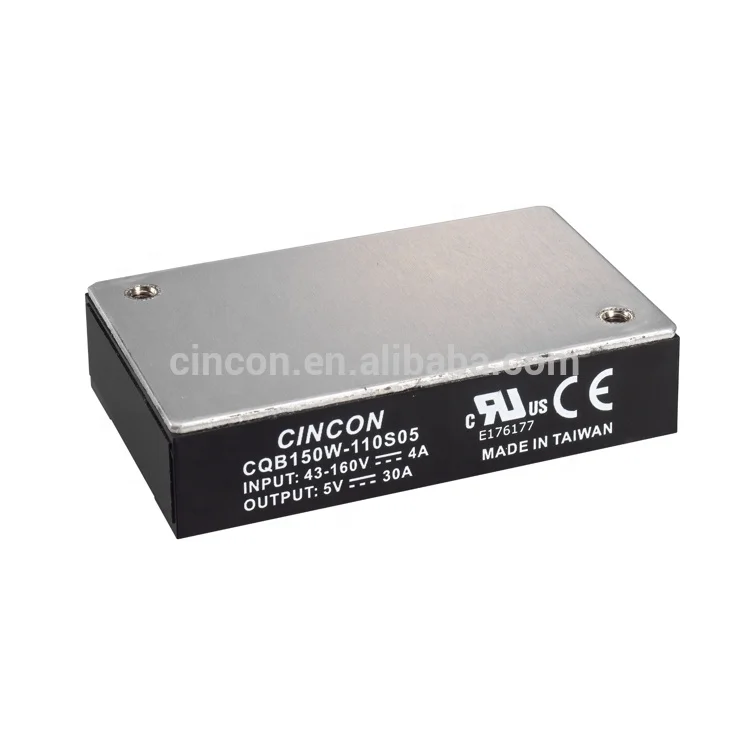

Cincon Railway DC DC CONVERTER CQB150W-110S 150W 110V 43-160V Input to 5V, 12V, 24V, 28V, 48V Output

FOB Reference Price:Get Latest Price
$85.00 - $99.70 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
Cincon
Model Number:
CQB150W-110S
Output Power:
150W
Input Voltage:
43-160Vdc
Output Voltage:
5V, 12V, 24V, 28V, 48Vdc
Type:
DC/DC Converters
Output Type:
Single
Output Current:
3.2~30A
Wide input:
4:1
dc dc:
150W
Railway:
110Vin
Supply Ability
Supply Ability:
120000 Piece/Pieces per Month
Packaging & Delivery
Port
Taiwan
Features

CQB150W-110 SERIES
150 WATT 4:1 INPUT RAILWAY DC-DC CONVERTER

* 150W Isolated Output
* Efficiency to 92%
* Fixed Switching Frequency
* 4:1 Input Range
* Regulated Outputs
* Remote On/Off
* Low No Load Power Consumption
* Over Temperature Protection
* Over Voltage/Current Protection
* Continuous Short Circuit Protection
* Quarter Brick Size Meet Industrial Standard
* CE Mark Meets 2014/30/EU
* UL60950-1 2nd (Basic Insulation) Approval
* CB Test Certificate IEC60950-1
* Meets EN50155 with External Circuits
* Shock & Vibration Meets EN50155 (EN61373)
* Fire & Smoke Meets EN45545-2
* 3000m Operating Altitude

Model type
MODEL
INPUT
OUTPUT
OUTPUT CURRENT
INPUT CURRENT
Efficiency (%)
CAPACITIVE LOAD MAX.
(Vdc)
(Vdc)
MIN.
MAX.
NO LOAD
FULL LOAD
CQB150W-110S05
43-160
5
0 mA
30 A
10mA
1.50A
91
10000μF
CQB150W-110S12
43-160
12
0 mA
12.5 A
10mA
1.48A
92
8000μF
CQB150W-110S24
43-160
24
0 mA
6.3 A
10mA
1.54A
89
3300μF
CQB150W-110S28
43-160
28
0 mA
5.4 A
10mA
1.54A
89
2700μF
CQB150W-110S48
43-160
48
0 mA
3.2 A
10mA
1.54A
90.5
1650μF

Note: 1. Nominal Input Voltage 110 VDC

Specification

All Specifications Typical At Nominal Line, Full Load, and 25℃ Unless Otherwise Noted

INPUT SPECIFICATIONS
Input Voltage Range
110Vin ................ 43 - 160 VDC
Input Surge Voltage (100ms max.)
200 VDC max.
Under Voltage Lockout
Vin Power Up ............... 41.5VDC typ.
Vin Power Down ...........38VDC typ.
Positive Logic Remote On/Off
(See Note 4 & 5)
Input Filter
PI Type
OUTPUT SPECIFICATIONS
Voltage Accuracy
±1.0% max
Transient Response, 25% Step Load Change
< 250μs
External Trim Adj. Range
 ±10%
Ripple & Noise, 20MHz BW (Note 3)
5V ........................... 40mV RMS, 100mV pk-pk max.
12V .......................... 60mV RMS, 150mV pk-pk max.
24V&28V................ 100mV RMS, 280mV pk-pk max.
48V ...................... 200mV RMS, 480mV pk-pk max.
Temperature Coefficient
±0.02%/℃
Short Circuit Protection
Continuous
Line Regulation (note 1)
±0.2% max
Load Regulation (note 2)
5V: ±0.5% max.
Others: ±0.2% max.
Over Voltage Protection trip Range, % Vo nom.
115-140%
Current Limit
110% - 160% Nominal Output
Start Up Time
100 ms typ.
GENERAL SPECIFICATIONS
Isolation Voltage
Input/Output: 3000 Vdc min.
Input/Case: 2250VDC min.
Output/Case: 500VAC min.
Isolation resistance
108Ω min.
Isolation Capacitance
1500 pF typ.
Switching Frequency
300KHz typ.
Operating Case Temperature
-40℃ to +100℃
Storage Temperature
-55℃ to +105℃
Thermal Shutdown Case Temperature
110℃ typ.
Humidity
95% RH max. Non-Condensing
MTBF (MIL-STD-217F, GB, 25℃, Full Load)
600Khrs typ.
Safety
meet UL60950-1
EMC
meet EN50155(EN50121-3-2:2008)
with external output filter meets EN50155(EN50121-3-2:2015
Shock/Vibration
meet EN50155(EN61373)
Environmental
EN50155(EN60068-2-1,2,30)
MECHANICAL CHARACTERISTICS
Dimensions
-CMFC: 4.60x2.40x1.26 inches (116.8x61.0x32.0 mm)
-CMFD: 4.60x2.49x1.35 inches (116.8x63.4x34.2 mm)
Case Material
-CMFC: Aluminum Base
-CMFD: Aluminum Base and Aluminum Cover
Weight
-CMFC: 215g
-CMFD: 300g

NOTE:

1. Measured from high line to low line.
2. Measured from full load to zero load.
3. Output ripple and noise measured with 1uF ceramic capacitor across output.

4. Logic Compatibility .................................... open collector ref to -input
    Module on ...................... >3.5Vdc to 160Vdc or open circuit
    Module off .................................................. 0 to< 1.2Vdc
5. Suffix "N" to the model number with negative logic remote on/off
    Module on .................................................... 0 to< 1.2Vdc
    Module off ....................... >3.5Vdc to 160Vdc or open circuit
6. Output connector CN3 wafer with TAIWAN KING PIN TERMINAL P110I series and mate with JST housing PH series or

    equivalent.
7. CN1 & CN2 connection: DINKLE EK500V-04P series or equivalent, suitable electric wire: 24~12AWG( IEC 0.5~2.5mm2 ).

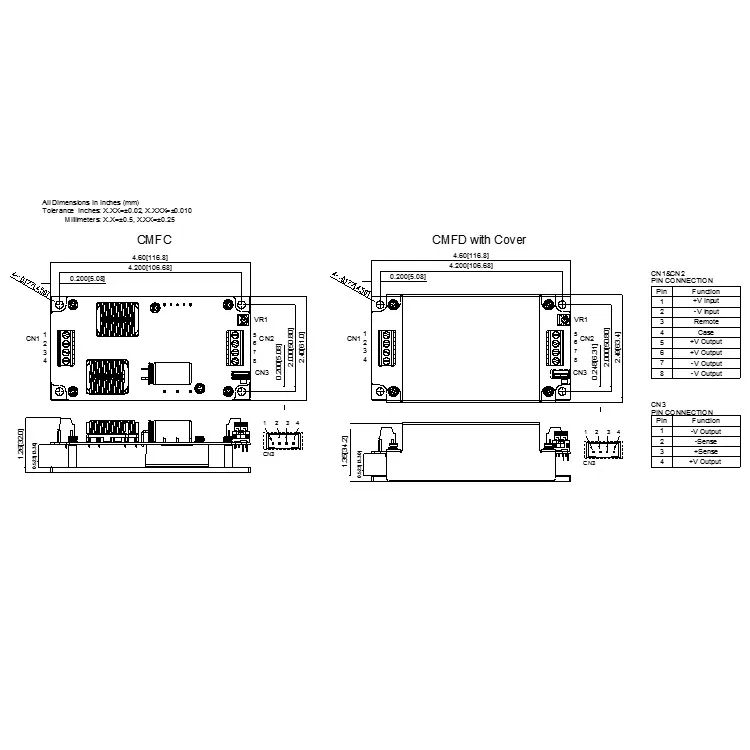

Dimensions
