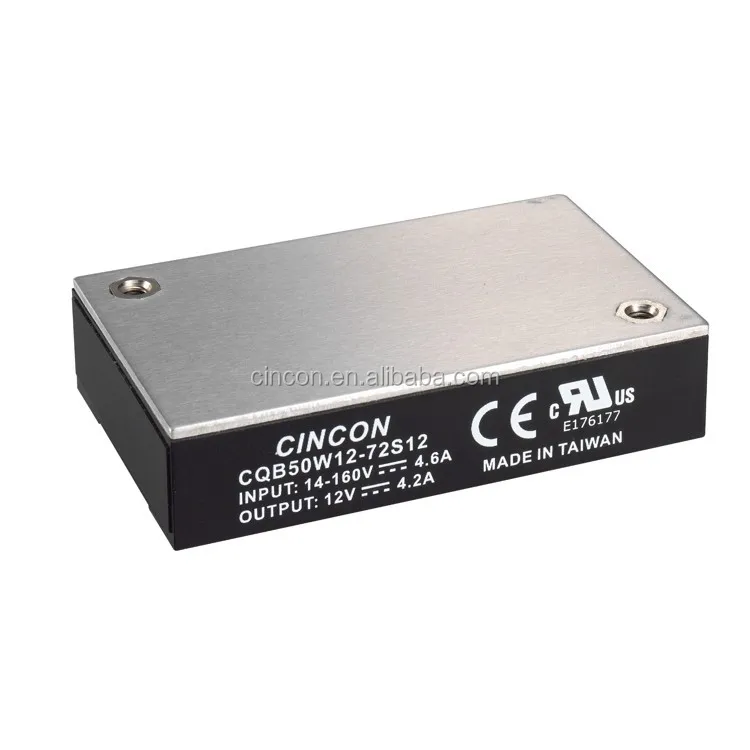

Cincon DC DC CONVERTER POWER MODULE CQB50W12, QUARTER BRICK 50W, 14-160Vin 12:1 ULTRA WIDE INPUT, 5V, 12V, 24V, 48Vout

FOB Reference Price:Get Latest Price
$73.34 - $90.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
Cincon
Model Number:
CQB50W12
Output Power:
50 Watt
Input Voltage:
14~160Vin
Output Voltage:
5, 12, 24, 48Vdc
Type:
DC/DC Converters
Output Type:
Single
Size:
2.28x1.45x0.50 inches
Weight:
61.5g
ULTRA Wide input:
14-160Vdc
dc dc:
50W
Supply Ability
Supply Ability:
120000 Piece/Pieces per Month
Packaging & Delivery
Port
Taiwan
Features

CQB50W12 SERIES
50 WATT 12:1 INPUT DC-DC CONVERTER

* 30-50W Isolated Output
* Efficiency to 89%
* Fixed Switching Frequency
* 12:1 Input Range
* Regulated Outputs
* Remote On/Off
* Low No Load Power Consumption
* Over Temperature Protection
* Over Voltage/Current Protection
* Continuous Short Circuit Protection
* Quarter Brick Size Meet Industrial Standard
* UL60950-1 2nd (Basic Insulation) Approval
* CB Test Certificate IEC60950-1
* Meet EN50155 with External Circuits
* Shock & Vibration Meets EN50155 (EN61373)
* Fire & Smoke Meet EN45545-2
* 5000m Operating Altitude

Model type
MODEL
INPUT
OUTPUT
OUTPUT CURRENT
INPUT CURRENT
EFFICIENCY (%)
CAPACITOR LOAD MAX
(Vdc)
(Vdc)
MIN
MAX
NO LOAD
FULL LOAD
(1)
(2)
CQB50W12-72S05
14-160
5
0 mA
6.0 A
5 mA
530 mA
83
81
10000uF
CQB50W12-72S12
14-160
12
0 mA
4.2 A
5 mA
810 mA
87
86
6800μF
CQB50W12-72S24
14-160
24
0 mA
2.1 A
5 mA
810 mA
89
87
3300μF
CQB50W12-72S48
14-160
48
0 mA
1.05 A
8 mA
810 mA
88
85
680μF

Note:

1. Nominal Input Voltage 72 VDC
2. Measured at 110Vin

Specification

All Specifications Typical At Nominal Line, Full Load, and 25℃ Unless Otherwise Noted

INPUT SPECIFICATIONS
Input Voltage Range
72V................ 14 - 160 VDC
Input Surge Voltage (100ms max.)
200VDC max
Under Voltage Lockout
Power Up ............... 14.6VDC typ.
Power Down ...........12.0VDC typ.
Positive Logic Remote On/Off
Note 4 & 5
Input Filter
PI Type
OUTPUT SPECIFICATIONS
Voltage Accuracy
±1.0% max
Transient Response 25% Step Load Change
<250us
External Trim Adj. Range
 -20%~+10%
Ripple & Noise, 20MHz BW (note 3)
40mV RMS, 100mV pk-pk max
Temperature Coefficient
±0.02%/℃
Short Circuit Protection
Continuous
Line Regulation (note 1)
±0.2% max
Load Regulation (note 2)
±0.2% max.
Over Voltage Protection trip Range, % Vo nom
115-140%
Current Limit
110% - 220% Nominal Output
Start Up Time
30ms typ.
GENERAL SPECIFICATIONS
Isolation Voltage
Input/Output ................. 3000VDC min.
Input/Case ..................... 2500VDC min.
Output/Case ..................... 500VAC min.
Isolation resistance
2x108Ω min.
Isolation Capacitance
1000pF typ.
Switching Frequency
240KHz typ.
Operating Case Temperature
-40℃ to +100℃
Thermal Shutdown, Case Temp
110℃ typ.
Storage Temperature Range
-55℃ to +125℃
Humidity
95% RH max. Non-Condensing
Operating Altitude
5000m
MTBF (MIL-STD-217F, GB, 25℃, Full Load)
780Khrs typ.

Safety
UL60950-1 2nd (Basic insulation)
EMC (note 8)
Meet EN50155(EN50121-3-2) with external filter
Shock/Vibration
EN50155 (EN61373)
Fire & Smoke
Meet EN45545-2
MECHANICAL CHARACTERISTICS
Dimensions
2.28x1.45x0.50 inches (57.9x36.8x12.7 mm)
Case Material
Aluminum Baseplate with Plastic Case
Weight
61.5g

NOTE:

1. Measured from high line to low line.
2. Measured from full load to zero load.
3. Output ripple and noise measured with 22uF aluminum solid capacitor and 1uF ceramic capacitor across output.
4. Logic compatibility .................................. open collector refer to -Input
    Module on...................... > 3.5VDC to 160VDC or open circuit
    Module off .................................................. 0 to <1.2 VDC
5. Suffix "N" to the model number with negative logic remote on/off
    Module on .................................................. 0 to <1.2 VDC
    Module off ........................ >4.0VDC to 160VDC or open circuit
6. Suffix "-C" to the model number with clear mounting insert (3.2mm DIA.)
7. An external input capacitor 68uF for all models are recommended to reduce input ripple voltage.

8. For information about EN50155 and RIA12, refer to application note.

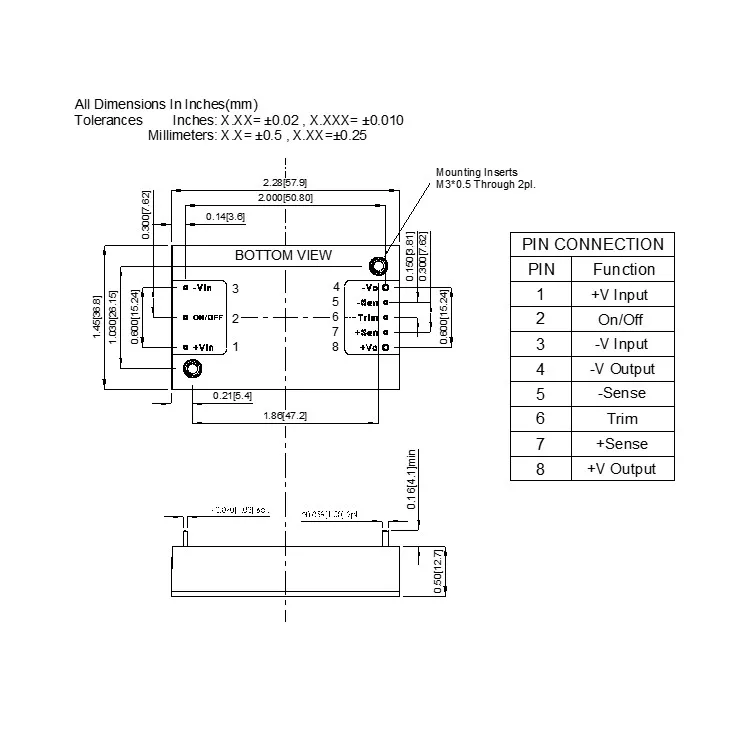

Dimensions
