ECLB60W SERIES
60 WATT 4:1 INPUT DC-DC CONVERTER

* 60W Isolated Output
* Efficiency to 92%
* Low No Load Power Consumption
* 2.05''x1.2"x0.4'' Six-Sided Shield Metal Case
* 4:1 Input Range
* Regulated Outputs
* Fixed Switching Frequency
* Input Under Voltage Protection
* Over Current Protection
* Remote On/Off
* Continuous Short Circuit Protection
* No Tantalum Capacitor Inside
* CE Mark Meets 2011/65/EU
* Safety Meets UL60950-1, EN60950-1, and IEC60950-1
* Full Load Operation Up to 60℃ with Heat-Sink M-C655 Natural Convection

Model type
MODEL
INPUT
OUTPUT
OUTPUT CURRENT
INPUT CURRENT
Efficiency (%)
CAPACITIVE LOAD MAX.
(Vdc)
(Vdc)
MIN.
MAX.
NO LOAD
FULL LOAD
(2)
(3)
ECLB60W-24S33
9-36
3.3
0 mA
15000 mA
10 mA
2279 mA
90
90.5
15000μF
ECLB60W-24S05
9-36
5
0 mA
12000 mA
10 mA
2717 mA
92
92
12000μF
ECLB60W-24S12
9-36
12
0 mA
5000 mA
10 mA
2717 mA
92
92.5
5000μF
ECLB60W-24S15
9-36
15
0 mA
4000 mA
10 mA
2717 mA
91
92
4000μF
ECLB60W-24D12
9-36
±12
0 mA
±2500 mA
12 mA
2747 mA
91
91
2500μF
ECLB60W-24D15
9-36
±15
0 mA
±2000 mA
12 mA
2747 mA
91
92
2000μF
ECLB60W-48S33
18-75
3.3
0 mA
15000 mA
8 mA
1140 mA
90.5
91
15000μF
ECLB60W-48S05
18-75
5
0 mA
12000 mA
8 mA
1359 mA
92
92
12000μF
ECLB60W-48S12
18-75
12
0 mA
5000 mA
8 mA
1359 mA
92
92.5
5000μF
ECLB60W-48S15
18-75
15
0 mA
4000 mA
8 mA
1359 mA
91
92
4000μF
ECLB60W-48D12
18-75
±12
0 mA
±2500 mA
8 mA
1374 mA
91
91
2500μF
ECLB60W-48D15
18-75
±15
0 mA
±2000 mA
8 mA
1374 mA
91
92
2000μF

Note:

1. Nominal Input Voltage 24 or 48 VDC
2. Measure at 12VDC for 24 Vin, 24VDC for 48 Vin
3. Measure at Nominal Input Voltage

Specification

All Specifications Typical At Nominal Line, Full Load, and 25℃ Unless Otherwise Noted

INPUT SPECIFICATIONS
Input Voltage Range
24Vin ................ 9 - 36 VDC
48Vin ................ 18 - 75 VDC
Input Surge Voltage (100ms max.)
24Vin ................50 VDC max.
48Vin ................100 VDC max.
Under Voltage Lockout
24Vin Power Up ............... 8.5VDC typ.
24Vin Power Down ...........8.0VDC typ.
48Vin Power Up ............... 17VDC typ.
48Vin Power Down ...........16VDC typ.
Remote On/Off
(See Note 3)
Input Filter
PI Type
OUTPUT SPECIFICATIONS
Voltage Accuracy
±1.5% max
Voltage Balance (Dual Output)
±1.0% max
Transient Response
75%-100% Step Load Change
Error Band: ±5%
Vout Nominal, Recovery Time: < 250μs
External Trim Adj. Range (Single Output Models Only)
 ±10%
Ripple & Noise, 20MHz BW (Measured with 1uF MLCC)
Vo=3.3 & 5V................................... 100mV pk-pk max.
Vo=12 & 15V & ±12V & ±15V........ 150mV pk-pk max.
Temperature Coefficient
±0.02%/℃
Short Circuit Protection
Continuous (Hiccup Mode)
Line Regulation (note 1)
Single/Dual ±0.2% max
Load Regulation (note 2)
Single/Dual ±0.5% max.
Cross Regulation (Dual Output) Load Cross Variation 10%/100%
±0.5% max.
Over Voltage Protection
Zener or TVS Clamp
Current Limit
110% - 170% Nominal Output
Start Up Time
30 ms max.
GENERAL SPECIFICATIONS
Isolation Voltage
Input/Output: 1500 Vdc min.
Input/Case, Output/Case: 1000 Vdc min.
Isolation resistance
109Ω min.
Isolation Capacitance
Input/Output: 1500 pF typ.
Input/Case, Output/Case: 1000pF typ.
Switching Frequency
Single: 245KHz typ.
Dual: 300KHz typ.
EMI/RFI
Six-Sided Continuous Shield
Operating Ambient Temperature
-40℃ to +85℃
De-rating, Above 45℃ (note 5)
Linearly to Zero Power at +105℃
Case Temperature (note 6)
105℃ max.
Cooling
Natural Convection
Storage Temperature Range
-55℃ to +125℃
Thermal Shutdown Case Temperature
110℃ typ.
Humidity
95% RH max. Non-Condensing
MTBF (MIL-STD-217F, GB, 25℃, Full Load)
Vo= 3.3V: 1116Khrs typ.
Vo= 5V: 872Khrs typ.
Vo= 12V: 930Khrs typ.
Vo= 15V : 1230Khrs typ.
Vo= ±12V : 859Khrs typ.
Vo= ±15V : 1063Khrs typ.
Shock/Vibration
Meet MIL-STD-810F
MECHANICAL CHARACTERISTICS
Dimensions
2.05x1.20x0.40 inches (52.0x30.5x10.2 mm)
Case Material
Aluminum with Non-Conductive Base
Weight
39g

NOTE:

1. Measured from high line to low line.
2. Measured from full load to min. load.
3. Logic compatibility ... CMOS or open collector TTL, refer to –Vin.
    Module on ................... >3.5VDC to 75VDC or open circuit
    Module off ................................................. 0 to < 1.2VDCt
4. Suffix "N" to the model number with negative logic remote on/off
    Module on .................................................. 0 to < 1.2 VDC
    Module off ......................... >3.5VDC to 75VDC or open circuit
5. Maximum case temperature under any operating condition should not be exceeded 105℃.

6. Refer application note item 6.2.

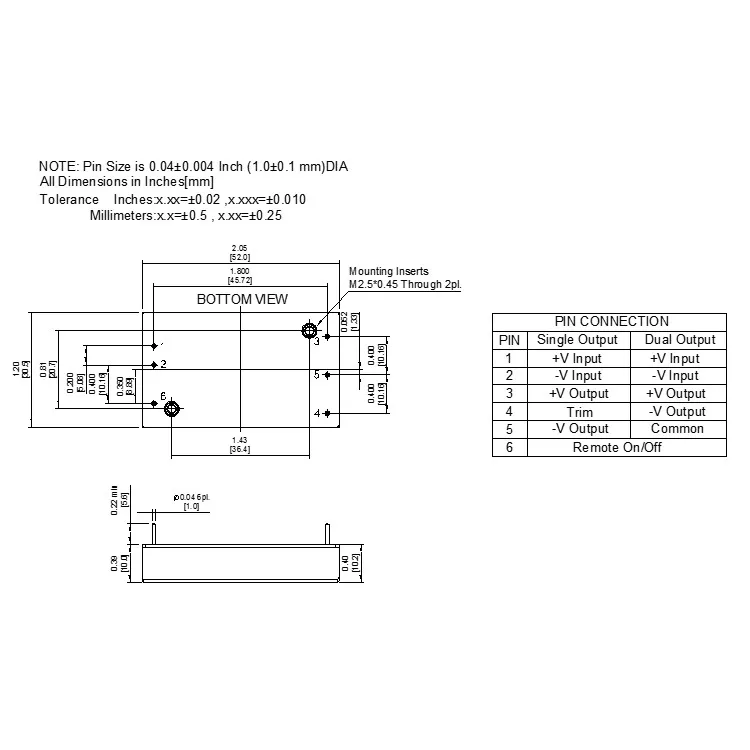

Dimensions
