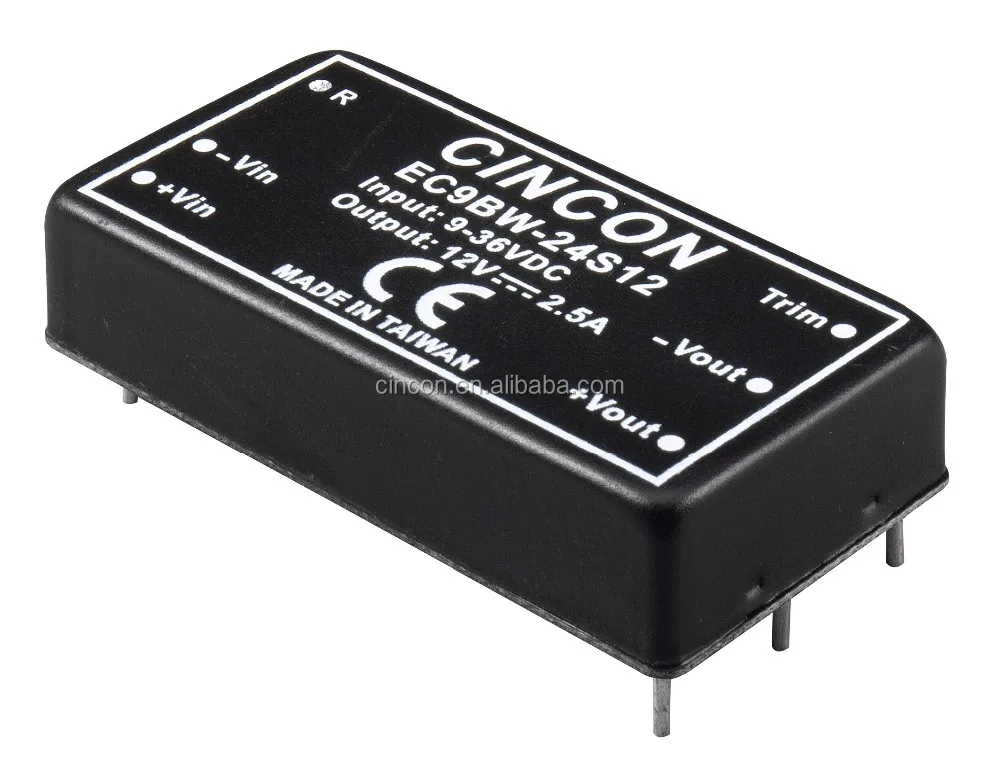

Cincon DC-DC CONVERTER EC9BW 30W 9-36V 24V 18-75V 48V Input to 3.3V, 5V, 12V, 15V, +/-12V, +/-15V output

FOB Reference Price:Get Latest Price
$37.09 - $41.91 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
Cincon
Model Number:
EC9BW
Output Power:
30W
Input Voltage:
9-36V 18-75Vdc
Output Voltage:
3.3V,~15Vdc, +/-12V, +/-15Vdc
Type:
DC/DC Converters
Output Type:
Single/Dual
Output Current:
±1A, ±1.25A, 2~7.5A
Wide input dc:
2''x1''
30W:
dc dc
Supply Ability
Supply Ability:
120000 Piece/Pieces per Month
Packaging & Delivery
Port
Hong Kong
Features

EC9BW SERIES
30 WATT SINGLE OUTPUT DC-DC CONVERTER

* 30W Isolated Output
* Efficiency to 92%
* 2''x1'' Six-Sided Shield Metal Case
* 4:1 Input Range
* Regulated Outputs
* Fixed Switching Frequency
* Input Under Voltage Protection
* Over Current Protection
* Remote On/Off
* Continuous Short Circuit Protection
* No Tantalum Capacitor Inside
* CE Mark Meets 2004/108/EC
* Safety Meets UL60950-1, EN60950-1, and IEC60950-1

Model type
MODEL
INPUT
OUTPUT
OUTPUT CURRENT
INPUT CURRENT
Efficiency (%)
CAP LOAD MAX.
(Vdc)
(Vdc)
MIN.
MAX.
NO LOAD
FULL LOAD
(2)
(3)
EC9BW-24S33
9-36
3.3
0 mA
7500 mA
100 mA
1172 mA
88
88.5
7500μF
EC9BW-24S05
9-36
5
0 mA
6000 mA
110 mA
1397 mA
89.5
89.5
6000μF
EC9BW-24S12
9-36
12
0 mA
2500 mA
50 mA
1374 mA
91
90.5
2500μF
EC9BW-24S15
9-36
15
0 mA
2000 mA
50 mA
1374 mA
91
90.5
2000μF
EC9BW-24D12
9-36 VDC
±12
0 mA
±1250 mA
60 mA
1374 mA
91
90.5
1250μF
EC9BW-24D15
9-36
±15
0 mA
±1000 mA
60 mA
1359 mA
92
91
1000μF
EC9BW-48S33
9-36
3.3
0 mA
7500 mA
50 mA
593 mA
87
87.5
7500μF
EC9BW-48S05
18-75
5
0 mA
6000 mA
50 mA
694 mA
89.5
90
6000μF
EC9BW-48S12
18-75
12
0 mA
2500 mA
30 mA
683 mA
91.5
90
2500μF
EC9BW-48S15
18-75
15
0 mA
2000 mA
30 mA
679 mA
92
91
2000μF
EC9BW-48D12
18-75 VDC
±12
0 mA
±1250 mA
40 mA
683 mA
91.5
90.5
1250μF
EC9BW-48D15
18-75 VDC
±15
0 mA
±1000 mA
40 mA
679 mA
92
91
1000μF

Note:

1. Nominal Input Voltage 24 or 48 VDC

2. Measured at 12VDC for 24Vin, 24VDC for 48Vin
3. Measured at Nominal Input Voltage
Specification

All Specifications Typical At Nominal Line, Full Load, and 25℃ Unless Otherwise Noted

INPUT SPECIFICATIONS
Input Voltage Range
24VDC ................ 9 – 36VDC
48VDC ..................18 – 75VDC
Input Surge Voltage (100ms max.)
24VDC ............ 50VDC max.
48VDC ............ 100VDC max
Under Voltage Lockout
24Vin Power Up ............... 8.8VDC typ.
24Vin Power Down ........... 8.0VDC typ.
48Vin Power Up ................ 17VDC typ.
48Vin Power Down ............. 16VDC typ.
Input Filter
PI Type
Positive Logic Remote on/off Control
See note 3 & 4
OUTPUT SPECIFICATIONS
Voltage Accuracy
±1% max
Transient Response
75% - 100% Step Load Change
Error Band
 ±5% Vout nominal, Recovery Time ............. <250us
Ripple & Noise, 20MHz BW (Measured with 0.1uF MLCC)
Vo=3.3&5V ....................................... 75mV pk-pk max.
Vo=12V&15V&±12V&±15V ................. 100mV pk-pk max.
Temperature Coefficient
±0.02%/℃
Line Regulation (note 1)
Single, ±0.2% max
Dual, ±0.5% max
Load Regulation (note 2)
Single, ±0.5% max
Dual, ±1% max
Cross Regulation (Dual Output) Load Cross Variation 10%/100%
±0.5% max
Over Voltage Protection
Zener or TVS Clamp
Current Limit
110% - 160% Nominal Output
Output Short Circuit Protection
Continuous (Hiccup Mode)
External Trim Adj. Range (Single Output Models Only)
±10%
Start Up Time
5 ms typ.
GENERAL SPECIFICATIONS
Isolation Voltage
1500 Vdc min.
Isolation resistance
109Ω min.
Isolation Capacitance
1000pF typ.
Switching Frequency
430KHz typ.
EMI/RFI
Six-Sided Continuous Shield
Operating Ambient Temperature
-40℃ to +85℃
De-rating, Above 65℃
Linearly to Zero Power at +105℃
Cooling
Natural convection
Storage Temperature Range
-55℃ to +125℃
Humidity
95% RH max. Non-Condensing
Thermal Shutdown, Case Temp
110℃ typ.
MTBF (MIL-STD-217F, GB, 25℃, Full Load)
Single ... 900Khrs typ.
Dual ...... 650Khrs typ.
MECHANICAL CHARACTERISTICS
Dimensions
2.00 x 1.00 x 0.40 inches (50.8 x 25.4 x 10.2 mm)
Case Material
Black Coated Copper with Non-Conductive Base
Weight
35g

NOTE:

1. Measured from high line to low line.
2. Measured from full load to min. load.
3. Logic compatibility ....... CMOS or open collector TTL, referenced to –Vin.
      Module on ................................................... >3.5VDC to 75VDC or open circuit
      Module off ....................................................... <1.2VDC
4. Suffix "N" to the model number with negative logic remote on/off
      Module on ....................................................... <1.2VDC
      Module off .................................................. >3.5VDC to 75VDC or open circuit
5. Maximum case temperature under any operating condition should not be exceeded 105℃.

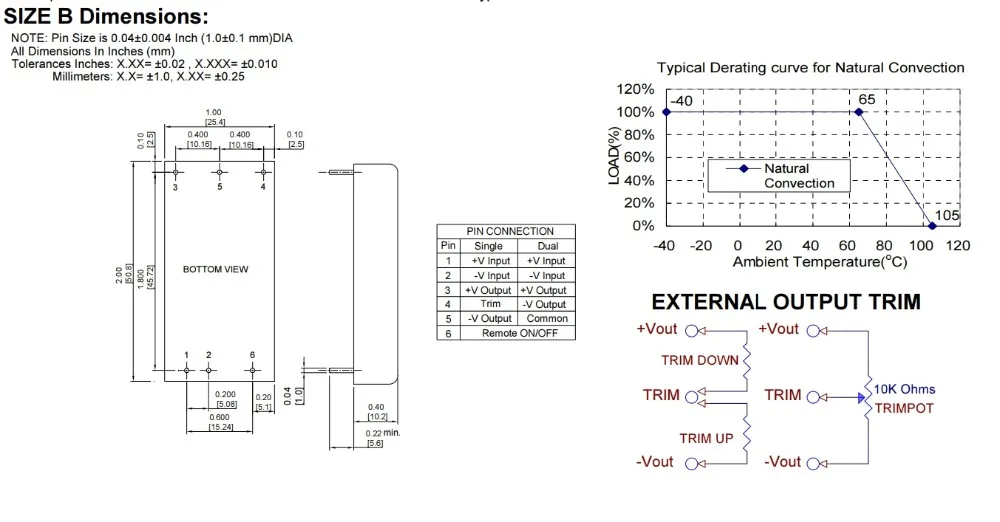

Dimensions
